Add an Application Stack
Servestead keeps the Compose file consumer-owned and stores public routing as separate metadata. Every service can deploy; only routes you explicitly define become public through Pangolin.
Before You Begin
Section titled “Before You Begin”The profile must have a configuration repository and completed platform setup. Prepare a working Compose model and know which service ports, if any, should be public.
1. Open Stack Inventory
Section titled “1. Open Stack Inventory”Open Profiles, select the environment, choose Stacks, then select Add stack.
The inventory shows each stack’s public-resource count, metadata status, Git state, and whether deployment is currently eligible.
2. Add Compose
Section titled “2. Add Compose”Enter a lowercase DNS-label stack name and the complete compose.yaml content. Servestead validates the Compose services before saving.
Use /data/<stack>/... for application bind mounts. Servestead creates the stack data directory with owner 1000:1000 on first deployment. Use a named volume or prepare the directory yourself when the image runs as another UID or GID.
Do not bind writable application data from /opt/servestead/repository; that checkout is deployment input.
3. Define Public Resources
Section titled “3. Define Public Resources”Select Add resource for each route that should be reachable through Pangolin. Provide:
- Stable resource ID.
- Compose service name.
- Subdomain and display name.
- Container port and protocol.
- SSO setting.
- Health-check path.
Leave a service without a public resource to keep it private.
4. Save and Review Git

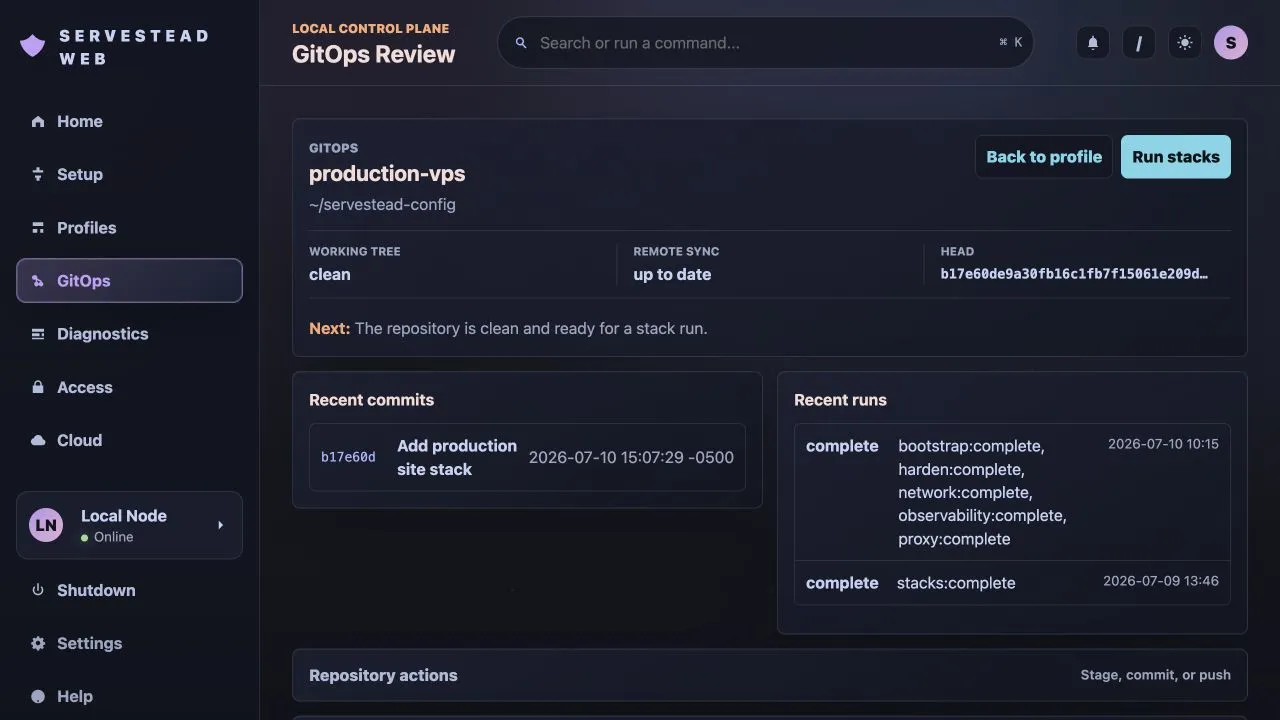

Section titled “4. Save and Review Git”Saving writes the stack files but does not deploy them. Open GitOps Review and inspect the working-tree changes.
Stage the managed stack changes, commit with a specific message, and push when your repository uses an origin. See GitOps review and sync for the full sequence.
5. Deploy
Section titled “5. Deploy”Return to Stacks and deploy the eligible stack, or use Run stacks to reconcile all current committed stacks. The run validates the merged Compose model before replacing containers and verifies the expected Pangolin resources afterward.
Expected Result
Section titled “Expected Result”The run completes, the stack inventory reports an understood Git state, and each configured public resource is reachable at its intended hostname after DNS and certificate issuance succeed.
Files Servestead Creates
Section titled “Files Servestead Creates”| File | Purpose |
|---|---|
stacks/<name>/compose.yaml |
Your reviewed Compose model. |
stacks/<name>/servestead.yaml |
Public-resource contract and route metadata. |
stacks/<name>/servestead.secrets.yaml |
Age-encrypted runtime values when secrets are configured. |
Servestead does not inject labels into the consumer-owned Compose file.
Add Runtime Secrets
Section titled “Add Runtime Secrets”The browser editor does not import a new .env file. Use the CLI:
./bin/servestead stack env set \ --profile <profile-id> \ --stack <name> \ --file /path/to/.envCommit the resulting encrypted servestead.secrets.yaml, never the populated .env. Back up the profile age identity as described in Access and secrets.
CLI Alternative
Section titled “CLI Alternative”For a scripted import:
./bin/servestead stack add \ --profile <profile-id> \ --compose /path/to/docker-compose.yml \ --publish web:3000:app \ --env-file /path/to/.env--publish is repeatable and uses service:port:subdomain[:id]. Omitting it creates a private stack.
